Smooth solder lines are the thing every beginner wants and almost nobody achieves on their first panel. The lines look lumpy, uneven, pitted, or flat — and it’s tempting to blame your hands. The hands are almost never the problem. Smooth solder lines come from four things working together: the right temperature, the right iron angle, solder loaded onto the tip correctly, and a clean tip. Fix those four things and the smoothness follows. Once you improve these aspects of your soldering, you’ll stop Googling how to get smooth solder lines and start working on the next project.

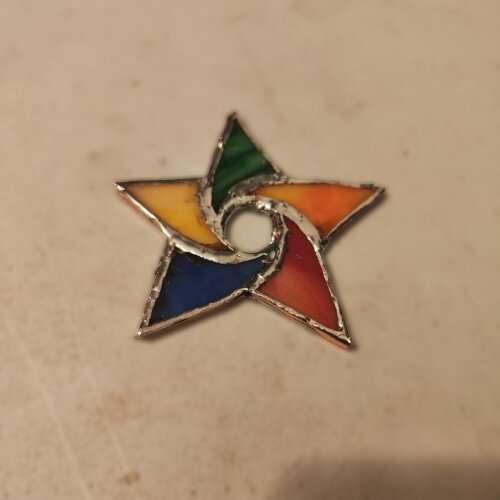

Why Solder Lines Come Out Rough
Before getting into technique, it helps to understand what actually causes rough lines.
Temperature problems are the most common cause. An iron that’s too hot produces solder that goes flat and runny. It spreads wide rather than building into a bead. An iron that’s too cold produces solder that drags and won’t flow, leaving a lumpy, uneven surface. Most beginners solder at inconsistent temperatures because they’re using fixed-temperature irons that cycle, and the result looks like a technique problem when it’s actually an equipment problem.
Wrong iron angle concentrates heat in one spot instead of distributing it along the seam. A tip pointing straight down creates a hot point that melts solder unevenly and produces pits.
Loading solder onto the foil instead of the tip means the solder melts from the wrong direction and doesn’t flow into the seam properly. The result is a lumpy pile rather than a smooth bead.
Dirty or oxidized tip transfers heat poorly and unevenly. A tip that looks dark and crusty is not doing its job. It’s one of the most common reasons solder behavior changes mid-session.
The Four Things That Produce Smooth Lines
1. Temperature
For smooth solder lines, 700°F to 800°F (370°C to 425°C) is the working range with 60/40 solder — our dedicated guide on stained glass soldering temperature covers what each range produces and how to verify your iron is calibrated accurately. Within that range, 725°F to 760°F is where most hobbyists get the best results for bead work.
At the right temperature, solder flows off the tip smoothly when you move the iron. It has a slight shine while molten and sets with a smooth, rounded surface. If it’s going flat and spreading too wide, lower the temperature slightly. If it’s not flowing and the bead looks dragged, raise it.
This is easier to control with a temperature-controlled iron. Fixed-temperature irons don’t hold steady, which is why smooth bead lines on cheap irons are inconsistent even when technique is right.
2. Iron Angle
Hold the iron nearly parallel to the glass surface, roughly 15 to 25 degrees off horizontal. Not pointing straight down.
When the tip points straight down, it concentrates heat directly onto one small point of foil. That spot overheats, solder puddles, and the surrounding foil stays cool. The result is an uneven bead with pits where the heat was concentrated.
A low angle lets the flat side of the tip contact the solder bead along its length. Heat distributes evenly along the seam rather than in one spot. This is what lets the bead build smoothly rather than puddling.
3. Load Solder onto the Tip, Not the Foil
Feed solder wire to the iron tip as you move along the seam. Don’t drop solder wire onto the foil and then try to melt it from above with the iron.
When you drop wire onto the foil and melt from above, you get inconsistent melt points. Some solder melts fully, some partially. The bead forms unevenly. Lumps and flat spots appear even when iron angle and temperature are correct.
Loading the tip means touching solder wire to the hot tip just before or as you move it along the seam. The tip picks up a small amount of molten solder and deposits it as you move. Consistent loading produces consistent bead thickness.
4. Clean and Tin the Tip Constantly
A clean, properly tinned tip is silver and slightly shiny. An oxidized tip is dark, crusty, and transfers heat poorly.
Wipe the tip on brass wool or a damp sponge every few minutes during a session. After wiping, immediately touch solder to the tip to re-tin it. Don’t wait. A freshly wiped tip oxidizes within seconds if you don’t re-tin immediately.
An oxidized tip is one of the most common reasons solder behavior deteriorates mid-session. The iron feels like it’s lost temperature, the bead starts looking worse, and the session starts feeling like a fight. Re-tinning almost always fixes it immediately.
The Finishing Pass
Most seams need more than one pass to look right. The first pass fills the joint and tacks everything together. Subsequent passes shape and smooth the bead.
For the finishing pass, use slightly less solder than the fill passes. You’re refining the shape rather than adding material. Move at a steady, moderate pace. Slow down and the bead overheats and flattens. Speed up and you get drag marks.
The finishing pass works best when the seam from the previous pass has cooled completely. Trying to smooth a bead that’s still hot from the previous pass usually makes it worse.
What Smooth Lines Actually Look Like
A smooth solder bead is slightly raised and rounded, like an upside-down half-cylinder running along the seam. It’s consistently wide from one end to the other. The surface is smooth and shiny after cooling.
It doesn’t have to be perfect. Professional-level bead lines take months of regular practice to develop. What you’re aiming for in the early stages is consistency. Lines that are roughly the same height and width from one end of a seam to the other, without pits, lumps, or flat sections.
Pits usually mean the iron was too hot. Lumps usually mean inconsistent solder loading. Flat sections usually mean the iron was too cold or moved too slowly. Drag marks mean too fast.
Common Mistakes That Ruin Otherwise Good Technique
Trying to smooth a bead while it’s still hot. Solder that hasn’t set is still moving. Going back over it before it cools just moves the problem around.
Pressing the iron into the seam. The iron should glide along the top of the bead, not press into it. Pressing down concentrates heat and creates pits.
Inconsistent speed. Stopping and starting mid-seam produces visible changes in bead width and height. Try to run each seam in one continuous pass.
Not using flux on the finishing pass. Fresh flux on the seam before the finishing pass helps solder flow smoothly. Skipping it often produces a dull, dragged finish.
Conclusion
Smooth solder lines are a skill that develops with practice, but they depend on getting the fundamentals right first. Right temperature, low iron angle, solder loaded onto the tip, clean tip throughout the session. Once those four things are consistent, the technique builds from there. For the complete soldering process from start to finish, our stained glass soldering guide walks through every step in detail.
FAQ
Why are my solder lines lumpy?
The most common causes are inconsistent solder loading (dropping wire onto the foil instead of loading the tip), an iron running too cold, or an oxidized tip that’s not transferring heat evenly. Check the tip condition first. Re-tin it and try again. If that doesn’t help, check iron temperature and practice loading solder onto the tip rather than the foil.
Why does my solder bead go flat instead of rounded?
Usually the iron is too hot, or you’re moving too slowly. Both cause the solder to overheat and spread flat rather than building up. Lower the temperature slightly and increase your movement speed. Make sure you’re holding the iron at a low angle rather than pointing straight down, which concentrates heat and flattens the bead.
How many passes does it take to get a smooth bead?
Typically two to three. The first pass fills the joint. The second shapes the bead. A third finishing pass is optional but improves the surface. Let each pass cool before going back over it. Trying to smooth a seam that’s still hot from the previous pass usually makes it worse.
Does the iron brand affect bead quality?
Yes, significantly. A temperature-controlled iron holds steady heat throughout a session, which produces consistent bead lines. A cheap fixed-temperature iron cycles between too hot and too cold, and no amount of technique improvement fully compensates for that inconsistency. If your lines are consistently rough despite working on technique, the iron is the first thing to evaluate.
